Siemens S7

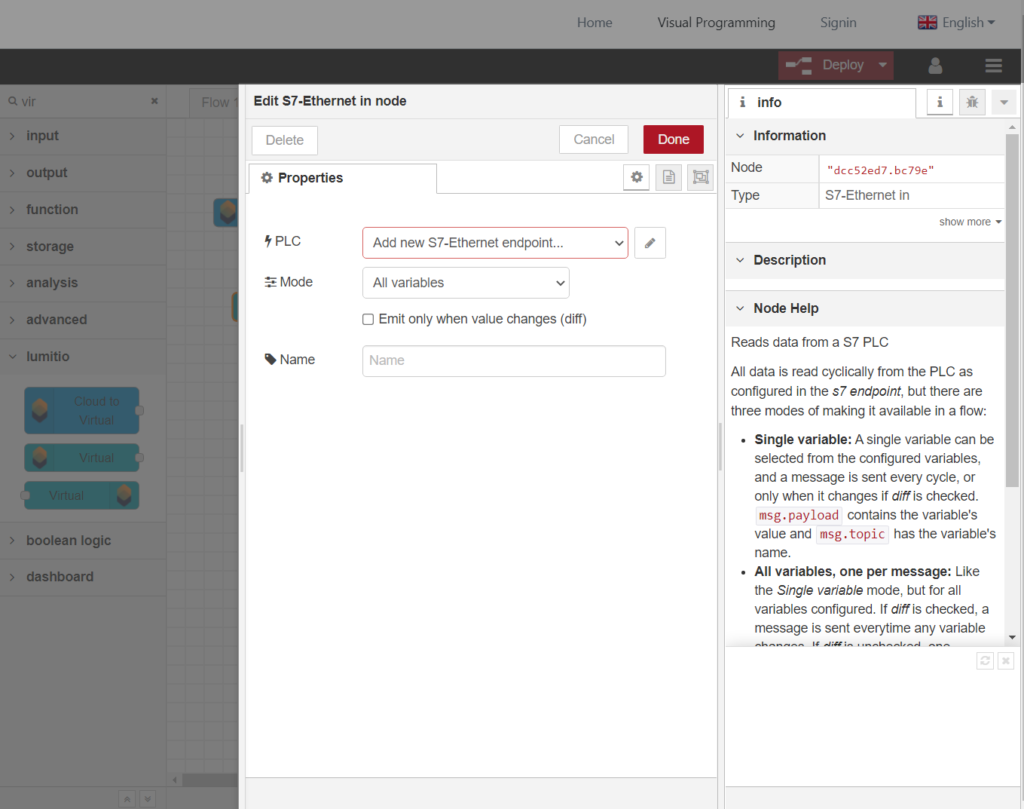

Step 1. Create Siemens S7 node

1Node Name
2Add new S7-Ethernet endpoint

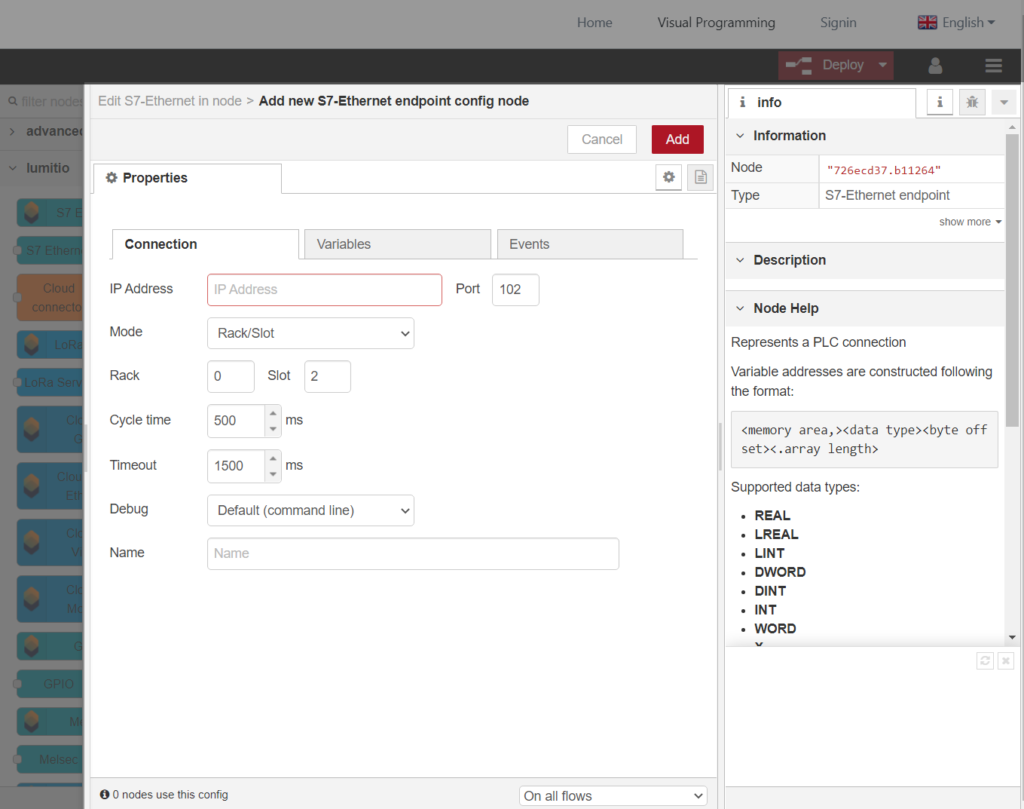

Step 2. Configure S7 Connection

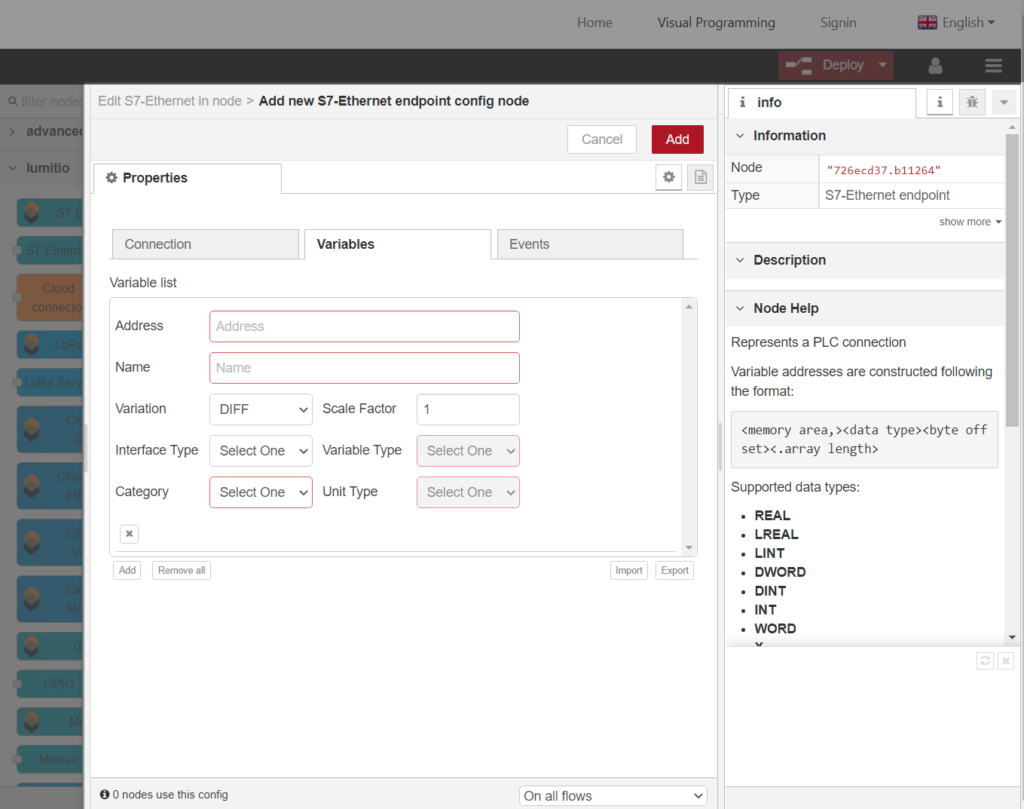

    Step 3. Add Variables

    AdressVariable addresses format:
    <memory area,><data type><byte offset><.array length>
    Supported data types:
    REAL
    LREAL
    LINT
    DWORD
    DINT
    INT
    WORD
    X
    B
    BYTE
    S
    STRING
    C
    CHAR
    TIMER
    COUNTER
    Address examples:
    X10 – Read in offset 10 from X
    DB1,REAL4 – Read in offset 4 from DB1
    DB1,INT12 – Read in offset 12 from DB1
    NameVariable Name

    Step 4. Now that you created your node go to Cloud Connector and start sending data to the cloud
